Autore: | D & JP Balmer [ 29/10/2012, 17:32 ] | ||
Oggetto del messaggio: | KEYS of sub-families POEMENIINAE & XORIDINAE , KEYS of their genera & sub-genera - Ichneumonidae | ||
3rd version : I deleted the comparisons between pm & mj, because there are exceptions for the Xoridinae which do not allow to generalize. Of where this 3rd version. ----- 2nd version : I had based the determination of P.(Calliclisis) on 2 photos of species a priori well determined, in fact they were not her (The 2 photos disappeared of the Net) ! The shape of the nervures observed on photos, thus did not characterize the Calliclisis. Of where this 2nd version. ===================== Biblio. Broad : Identification key to the subfamilies of Ichneumonidae (Hymenoptera) [Only on Internet ?] Clément 1938 : Opuscula Hymenopterologica. IV . Die paläarktischen Arten der Pimplinentribus ... in "Festschrift zum 60. Geburtstage von Professor Dr. Embrik Strand - Vol.4 p.502/569" Constantineanu 1977 : Fauna Republicii socialiste România - Vol. IX - fasc.7 [With the exception of the drawings, it seems that a big part of this book is only a translation of Clément] Fitton & aii. 1988 : RES Handbooks - Vol. 7 - part.1 - p.74/83 Townes : The Genera of Ichneumonidae - Vol. 1 - 3 & 4 --- Dicky S. Yu, Cornelis van Achterberg & Klaus Horstmann http://www.taxapad.com/global.php ----------- These keys owe a lot to the work of Gavin Broad (The key concerns only Great Britain)

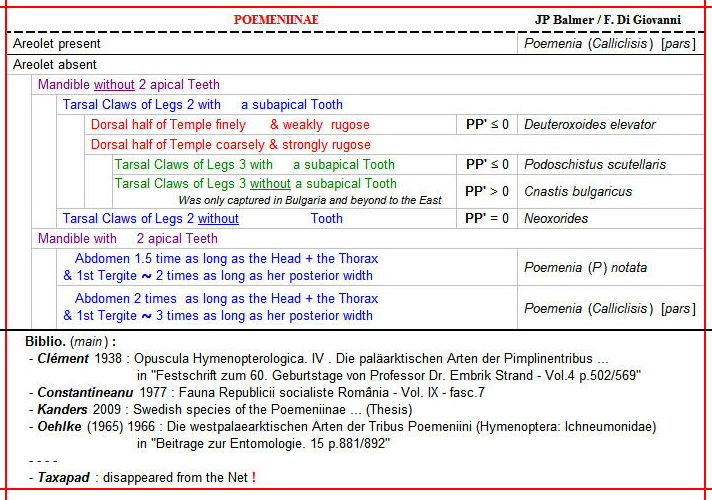

Thanks for F. di Giovanni (Eopteryx) who allowed me to improve the table of Keys of genera & sub-genera. ---- Fundamental characteristics of Poemeniinae & Xoridinae : - Forewings with vein 2m-cu present - Head sub-spherical (obvious character, more or less obvious for some other Ichneumonidae) - Poemeniinae (excluded Pseudorhyssa) :
There is obviously other numerous Ichneumonidae which also possess these caracteristics, thus let us see the determination of the 2 sub-families object of the present message. ----- KEY of 2 sub-families : 01 Mesoscutum (see as the drawing) with conspicuous transverse rugae across entire surface. ... Then 02 --. If not .......................................................................................................................... Then 03 02 Median longitudinal carinae of propodeum present & Occipital carina medio-dorsally complete. .... Then Pseudorhyssa 03 Spiracle of 1st tergite around the middle of the tergite or in the anterior half. .... & Length of the sternaulus <1/2 width of the mesopleuron. .... & Areolet of forewings is absent or if present : not rhombic. .... & Clypeus separated from face by a groove or transverse impression (the whole surface not strongly bulging) .... & Metasoma without grooves delimiting a triangular pattern on tergites 3-4. .... & Scutellum without long backwards-directed thorn. .... & Areolet of forewing not obliquely quadrate. ... Then 04 04 Epicnemial carina absent ... Then 05 --. Epicnemial carina present ... Then 06 05 Tarsal claws simple (not pectinate) or with a single accessory tooth. .... & Mandible unidentate, chisel-like, or if bidentate : the lower tooth is longer than upper. .... Then Poemeniinae (excluded Pseudorhyssa) 06 Areolet of forewings is absent & not open on the left (on the right forewing). .... & Mandible with 1 or 2 teeth (not appearing tridentate). .... & Tarsal claws simple (not pectinate) or with a single accessory tooth. .... & Vein 2m-cu of forewings with 2 bullae. .... & Femur 3 with a large ventral tooth or mandible with a single tooth or frons with a median horn. ... Then 07 07 ♀ ... Then 08 --. ♂ ... Then 09 08 Ovipositor without nodus neither notch nor ventral teeth. .... & 5th tarsal segment not broader than other tarsal segments. .... Then Xoridinae ♀ 09 Flagellomeres without semi-circular excavations. .... Then Xoridinae ♂ ----- Keys of genera & sub-genera, see table at the end of message. --- Photos (sure determination) on our Forum & Internet :
----------------------- ♀ http://www.biolib.cz/IMG/GAL/144129.jpg Ischnoceros caligulatus ♂ http://www.biolib.cz/IMG/GAL/147228.jpg Ischonoceros rusticus ♂ viewtopic.php?f=11&t=67381 --------------------- ♀ http://www.biolib.cz/IMG/GAL/147203.jpg Neoxorides nitens ♂♀ viewtopic.php?t=40481 Odotoncolon geniculatum ♂ http://www.galerie-insecte.org/galerie/ ... 660.jp.jpg ------------------------ ♀ http://www.galerie-insecte.org/galerie/ ... 750.jp.jpg Odotoncolon rufiventris ♀ http://www.biolib.cz/IMG/GAL/151258.jpg Odotoncolon spinipes ♀ http://www.biolib.cz/IMG/GAL/147199.jpg Poemenia (Calliclisis) hectica ♀ http://www.forum.hymis.de/viewtopic.php?f=15&t=13925 Poemenia (P.) notata ♀ http://www.forum.hymis.de/download/file ... &mode=view Xorides (Gonophonus) annulator ♀ viewtopic.php?f=104&t=8931&hilit=xorides Xorides (Moerophora) rufipes ♀ viewtopic.php?f=11&t=59407 Xorides (X.) csikii ♀ http://www.cthirion.eu/details.php?imag ... ode=search Xorides (X.) filiformis ♂♀ viewtopic.php?f=104&t=22828 Xorides (X.) fuligator ♀ viewtopic.php?f=11&t=67305 Xorides (X.) gracilicornis ♂♀ viewtopic.php?f=104&t=33090&hilit=xorides Xorides (X.) gravenhorstii ♀ http://www.biolib.cz/IMG/GAL/146306.jpg Xorides (X.) praecatorius ♀ download/file.php?id=41693 Xorides (X.) sepulchralis ♂♀ viewtopic.php?f=104&t=22825
|
Autore: | Eopteryx [ 29/10/2012, 23:04 ] |
Oggetto del messaggio: | Re: KEYS of sub-families POEMENIINAE & XORIDINAE , KEYS of their genera & sub-genera - Ichneumonidae |
Good work JP, just some points: 1. Ischnoceros can be easily distinguished from the other Xoridinae for the presence of a frontal horn. 2. You forgot the poemenine genus Cnastis, which has wrinkled temples (as Neoxorides and Podoschistus) and a tooth on tarsal claw I and II (Neoxorides has tarsal claws simple - Podoschistus has teeth on tarsal claws 1-2-3). Here the description of the european C.bulgaricus: A Review of the Genus Cnastis TOWNES and a Key to the Palearctic Species - Linzer biologische Beitrage 28/1: 231-236 http://www.landesmuseum.at/pdf_frei_rem ... 1-0236.pdf I send you a mp Filippo |
Autore: | D & JP Balmer [ 30/10/2012, 10:59 ] |
Oggetto del messaggio: | Re: KEYS of sub-families POEMENIINAE & XORIDINAE , KEYS of their genera & sub-genera - Ichneumonidae |
Saluti, Thank you for your observations. For the genus Ischnoceros, Thank you for this fundamental precision, I am probably going to modify my key, when I can it. For the genus Cnastis, I had referred to FE (who does not quote it) and to Townes (which quoted it for only Eastern Europe and Japan). I had not thus verified with Taxapad ! I think (as what takes place for certain other genera or species) that we shall not capture Cnastis to the West of Bulgaria. However I will how see integrating this genus into my key. Ciao. D & JP Balmer |
